Product Information

The SCAMMER was first developed in 1995 for the UK military in response to the need for a low cost self contained GPU able to produce both continuous DC power for pre-flight/avionics use and short-term high power for turbine starting.

In various configurations and in series production over 17 years, with sales to several armed forces, the latest version of this mini diesel GPU has been adapted for civil use and is now available for FBOs, regional airlines, and operators requiring versatile remote power at a fraction of the cost of a conventional diesel GPU.

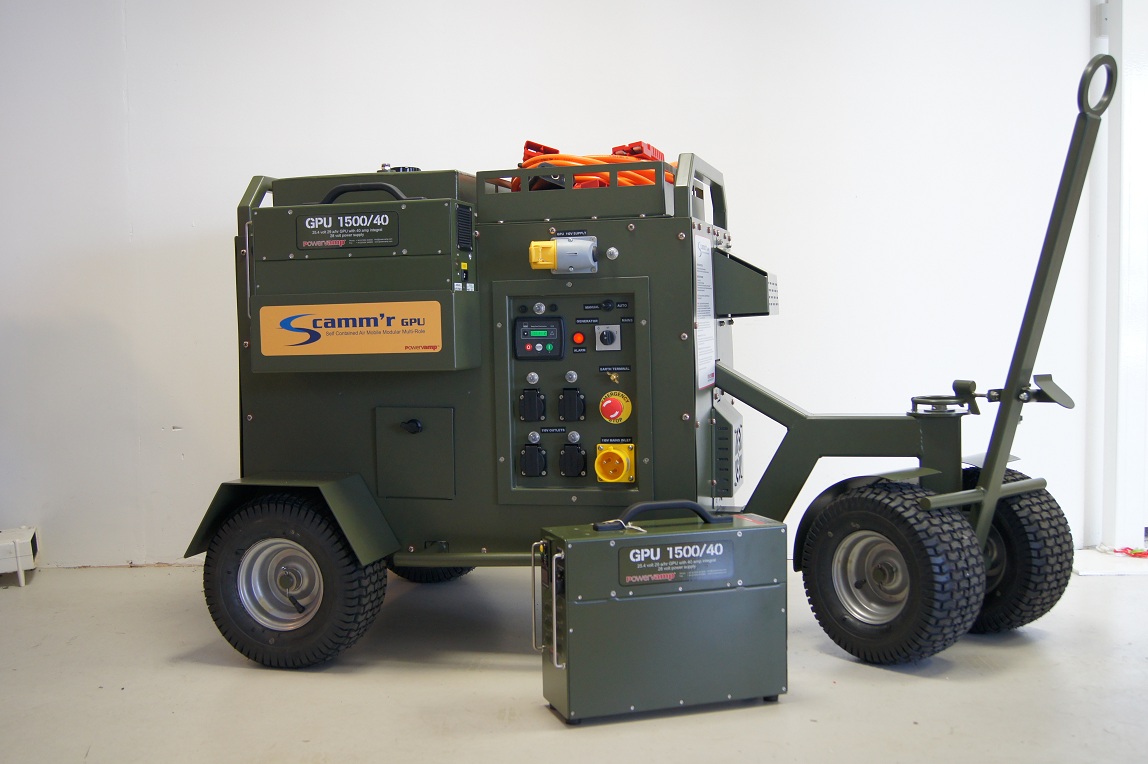

The Powervamp SCAMMER – self-contained, air mobile, modular, emission-restricted – GPU comprises a small high-efficiency single cylinder diesel engine able to run on diesel or jet A1 fuel, direct coupled to a generator.Depending on specification, this provides continuous AC or DC power and very high amperage for starting turbines or powering aircraft systems for short duration by using either internal batteries or demountable portable DC power packs. A 115 volt 400Hz SCAMMER is available to power 400Hz aircraft systems.

For versatility, the output may be switched between 28 volt DC power and 110 or 230 volt 50/60Hz domestic voltage depending on customer spec, allowing the GPU to be used as a conventional gen-set.

In enclosed spaces such as maintenance shops or hangars, the diesel engine can be shut down and the unit powered directly from any 110/220V mains supply to provide 28V DC power without discharging the batteries.

Modular battery packs are an option, instantly delivering peak loads up to 2000 amps for the starting of large turbine powered DC regional aircraft.These optional packs may be used independently for maximum equipment utilisation and flyaway capability.

The SCAMMER can be disassembled for easy transport by road or air and supplied in a variety of configurations, and equipped with modular power supplies of up to 150 amps continuous output.

• Range of modular outputs available to suit individual starting requirements,
  up to 3000 peak amps
• Support 24/26V and 28.5V DC systems
• Up to 150 amps continuous at 28.5V DC
• Additional 110V/230V 50/60Hz power outlets for general ramp use
• Optional 115/200V 400Hz AC alternator for 400Hz avionics use
• Shore power capability for silent, clean aircraft maintenance supply within
  hangar
• Removable battery modules for use independently or as fly-away GPUs
  when required (see Options)
• Easy to manoeuvre and transport between operational bases
• Simple to service and maintain
• Modular designs to suit operator requirements
• Full datasheet available upon request

Unit Supplied as Standard With

• 130 amp/hr high dischargeVRSLA batteries
• 4-metre (13ft) double insulated DC output cable with heavy-duty rubber nato
  plug and ‘yoke’ cable if paralleled GPUs
• Frame manufactured from steel channel and square hollow section, finished
  as standard in yellow powder-coat paint.Alloy side panels and nonferrous/stainless steel fittings
• Alloy 23-litre (6 gallon) fuel tank with purge drain tap for air transportation
• Toolkit for service and maintenance
• Spare wheel
• Fire extinguisher (only supplied when shipped by surface transport)

Options

• Bolt-on twin front wheel, tow bar and rear wheel assembly to enable
  SCAMMER to be towed at up to 20kph (12mph)
• 2 x GPU 1500/40 24 volt demountable portable GPUs (see GPU 3000/80
  spec) includes paralleling yoke
• 2 x GPU 2000 37 amp/hr demountable GPUs (see GPU 4000 spec) includes
  paralleling yoke
• 2 x Coolspool 29, 28 volt, 29 amp/hr demountable GPUs (see Coolspool 58
  spec) includes paralleling yoke
• Padded protective jackets for demountable packs
• Extra output lead to allow individual pack use
